LED Window Light

Product:LED Window light

Description:

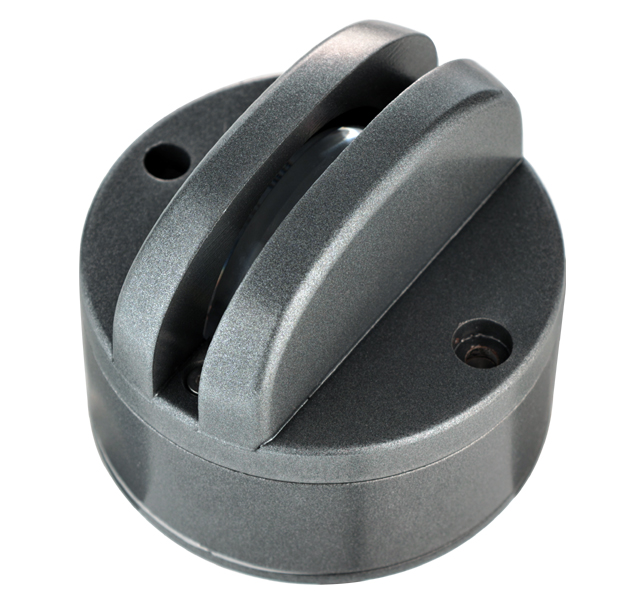

The Colordreamer Blade 180 is a IP66 rated exterior compact linear grazing luminaire with high output brightness.

Specification

Models	Diamond 1801	Diamond 1804
LED
Color	Static White/Tunable White	RGBW
Light Source	High Power LED	High Power RGBW 4IN1 LED
LED Source Color	W:2700K W:3000K W:4000K W:5700 W:6500K	R:619-624nm G:520-535nm B:460-475nm W:3000K/4000K/5700K
CRI for White LED	Ra>80	Ra>80
LED QTY	3LEDs	3LEDs
Performance
Lumen Output	640lm	416lm
Efficacy	80lm/W based at 3000K	52lm/W based at RGBW(W3000K)
Beam Angle	3*180°	3*180°
Electrical
Input Voltage	DC24V	DC24V
Power Consumption	8W	8W
Control
Protocols	Light on off DMX512 Control	DMX512 Control
Addressing	Manual Addressing with Colordreamer Addressing Tool
Physical
Housing	Aluminum 6063 with Tempered Glass
Finish Color	Powder coating, Black/Grey Silver or Custom RAL Color
Dimensions(LXWxH)	L216.5mmW47mmH138mm
Cable Entry	Side Entry
Mounting	Surface Mounting
Accessory
Packing
Environment
Operating Temperature	-30℃ to +50℃
Storage Temperature	-40℃ to +70℃
Humidity	0-90% non-condensing
IP Rating	Dry, Damp, Wet locations IP66
Certification and Safety
Certification	CE
Wrranty	2Years Limited Warranty from the Date of Manufacture Contact us if you need extended warranty
