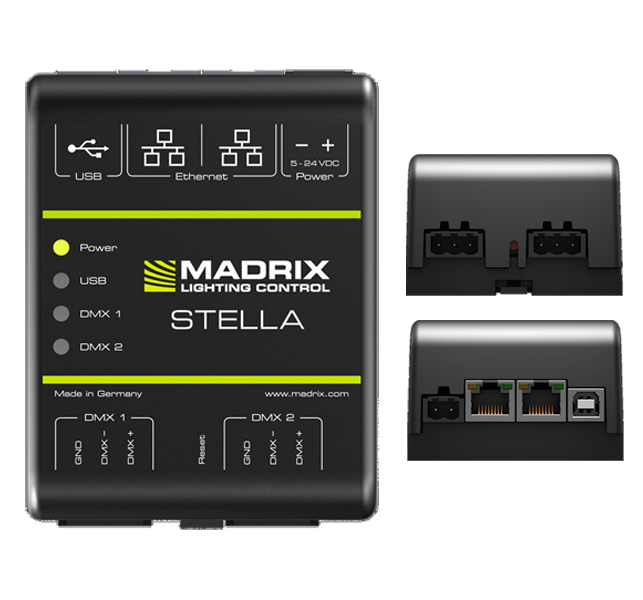

Madrix STELLA – 2-port node with RDM

Product: Madrix STELLA – 2-port node with RDM

Description:
Art-Net / Streaming ACN / USB
Art-Net or Streaming ACN data is directly converted to DMX512. Optimize and decentralize cabling to cover any distance to the device using Ethernet network.
Designed For DIN Rails Or Walls
Its non-conductive enclosure and standardized design for 35 mm top-hat rails make mounting quick, easy, and safe. 2 extra brackets are provided for optional wall mounting.
2 DMX-IN/OUT

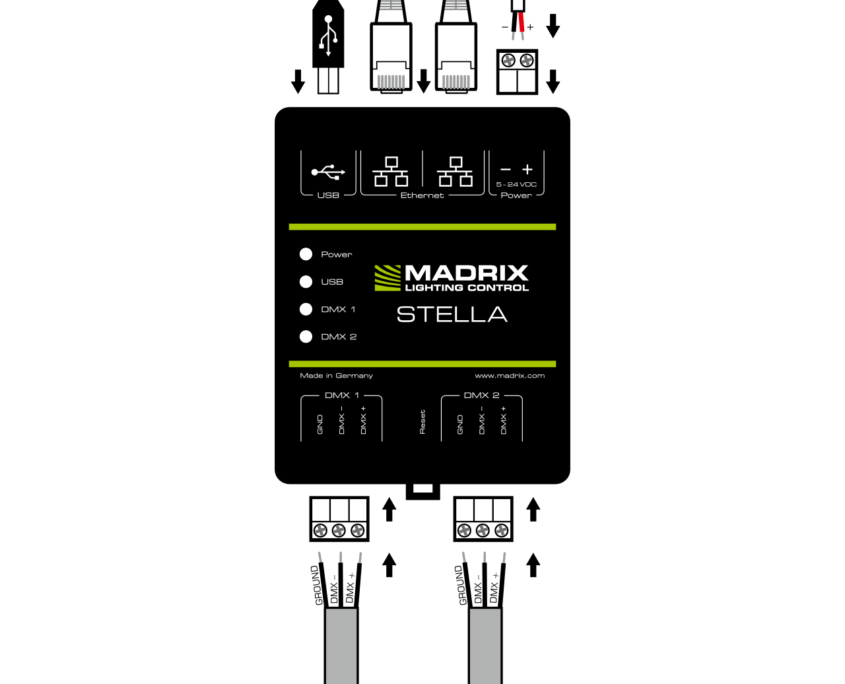

Directly connect DMX512 to the two 3-pin screw terminals to distribute 2 DMX universes per unit as input and/or output, eliminating the need for XLR connectors as a result. Simply use several units at the same time for larger projects.
RDM & Daisy-Chain Support
2 Ethernet ports allow for separate network connections as well as linearly daisy-chaining several devices together. On top, the device supports the Remote Device Management standard.

Specification

Models	Madrix STELLA
Electrical
Input Voltage	DC5-24V
Power Consumption	<1.5W
Control
Network Protocols	Art-Net (I, II, 3, 4, incl. ArtSync), Streaming ACN (sACN / ANSI E1.31)
RDM Role	Transmits commands and requests to RDM Responders and back (Art-Net Node / RDM Controller)
DMX512	2x 512 DMX channels, input and/or output (Automatically set per port)
Ports	2x ports (Via 2x 3-pin, pluggable screw terminals)
Ethernet Switch	Lookup Table (ALU) for 1,024 unicast MAC addresses
Ethernet	2x RJ45, Auto MDI-X, daisy-chain support, 10/100 MBit/s (Compatible with 1 GBit/s)
USB	1x port, USB 2.0, type-B female socket
Handling	5 status LEDs (+ 4 network status LEDs)
Physical
Housing Material	Non-conductive, V-0 flammability rating (UL94 test method), designed for 35 mm DIN-rails or wall mounting
Finish Color	Black

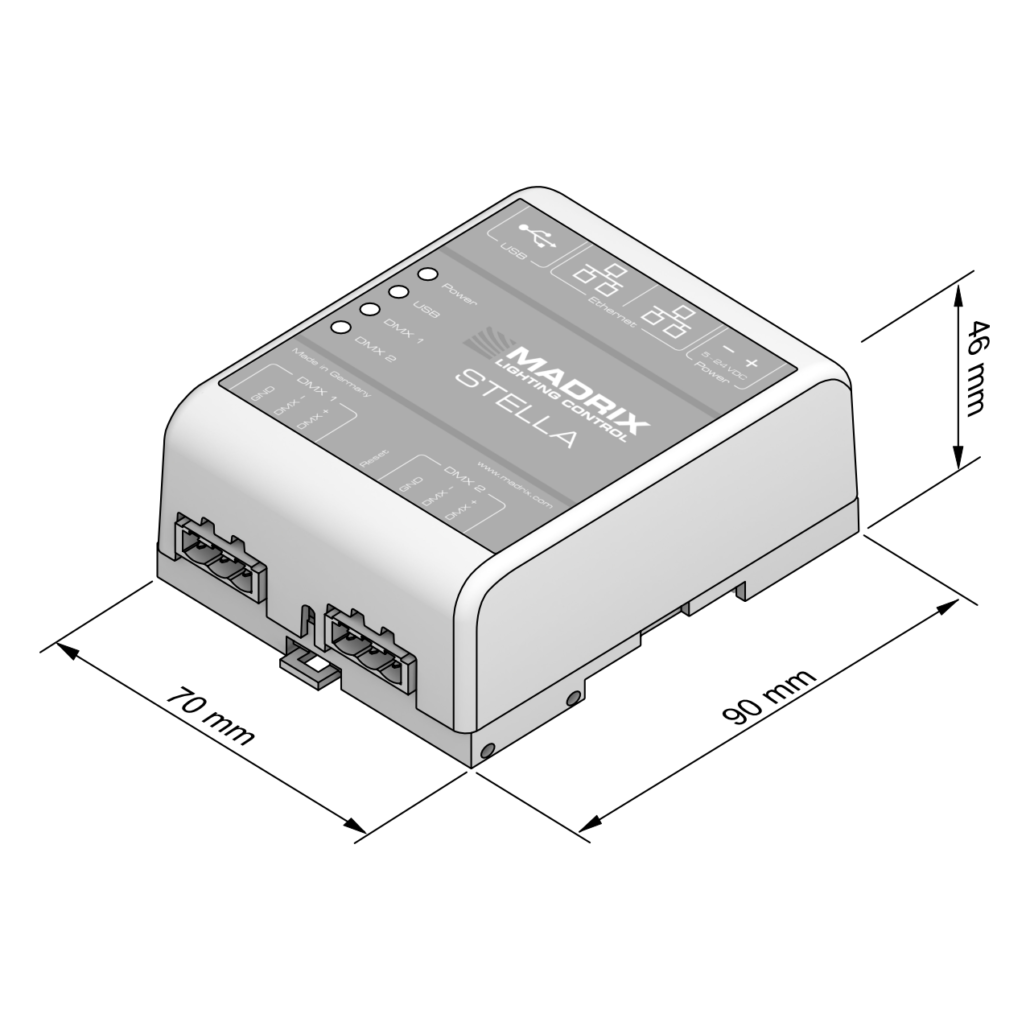

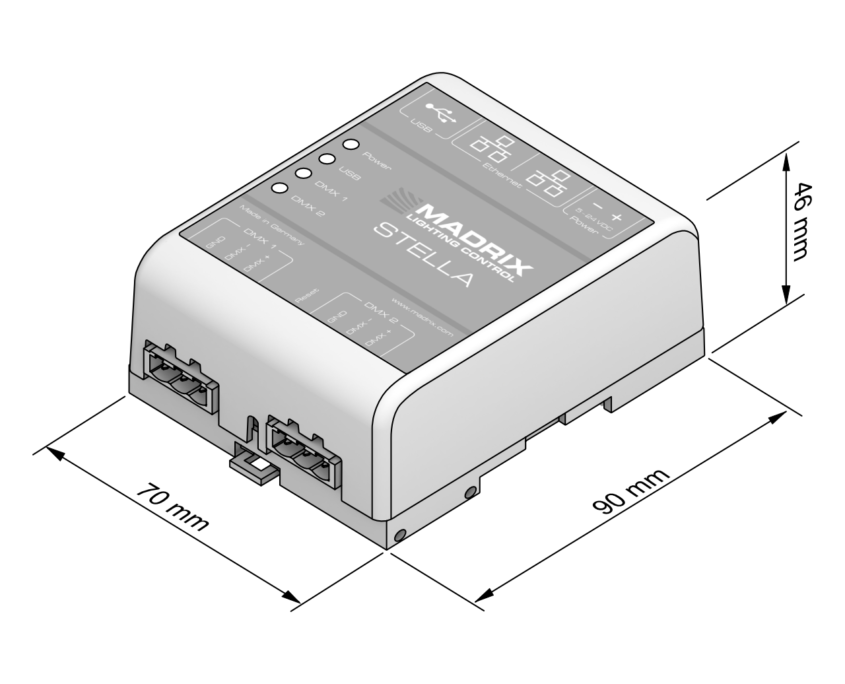

Dimensions(LXWxH) Body	90 mm × 70 mm × 46 mm
Weight	108 g (0.24 lb) \| 125 g (0.28 lb) incl. screw terminals and wall mounts
Environment
Operating Temperature	-10℃ to +70℃
Storage Temperature	-20℃ to +85℃
Humidity	5-80% non-condensing
IP Rating	Dry, Indoor IP20
Certification	CE, EAC, FCC, RoHS
Warranty	3Years Limited Warranty from the Date of Manufacture Contact us if you need extended warranty
