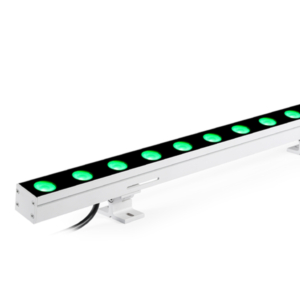

W36 Slim Washer White/RGBW 24VDC 36W/Meter On-Off/PWM/DMX

Product:W36 Slim Washer White/RGBW
24VDC 36W/Meter On-Off/PWM/DMX

Description:

The Colordreamer W36 LED Washer is a IP66 rated exterior compact linear grazing luminaire with high output brightness.

Specification

Models	W361002401	W361002404
LED
Color	Static White	RGBW
Light Source	High Power LED	High Power RGBW 4IN1 LED
LED Source Color	W:2700K W:3000K W:4000K W:5700K W:6500K	R:619-624nm G:520-535nm B:460-475nm W:3000K/4000K/5700K
CRI for White LED	Ra>80	Ra>80
LED QTY	24LEDs per meter	24LEDs per meter
Performance
Lumen Output	2880lm	1900lm
Efficacy	80lm/W based at 3000K	52lm/W based at RGBW(W3000K)
Beam Angle	8°Very Narrow 12°Narrow 20°Narrow Medium 30°Medium 45°Wide 12 X 45°Oval	20°Spot Beam 22 X 35°Oval Beam
Electrical
Input Voltage	21-24VDC	21-24VDC
Power Consumption	36W per meter 11W per feet	36W per meter 11W per feet
Control
Protocols	Light On-off PWM Dimmable DMX512 Control	DMX512 Control
Addressing	Manual Addressing with Colordreamer Addressing Tool
Pixels	1Pixel per fitting	1Pixels per meter 4Pixels per meter
Physical
Housing	Aluminum 6063 with Tempered Glass
Finish Color	Powder coating, Black/Grey Silver or Custom RAL Color
Dimensions(LXWxH)	10003632mm (exclude brackets)
Dimensions(LXWxH)	10005567mm (include brackets)
Length	500mm/1000mm 305mm/610mm/915mm/1220mm
Cable Entry	Bottom Entry
Mounting	Surface Mounting
Accessory	Asymmetric Louver/Symmetric Louver
Packing	Update soon
Environment
Operating Temperature	-30℃ to +50℃
Storage Temperature	-40℃ to +70℃
Humidity	0-90% non-condensing
IP Rating	Dry, Damp, Wet locations IP67
Certification and Safety
Certification	CE
Wrranty	3Years Limited Warranty from the Date of Manufacture Contact us if you need extended warranty
