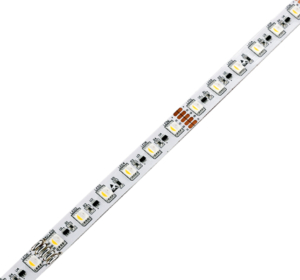

LED Strip 5050 – CC126004 RGBW Contant Current Drive

Product:LED Strip 5050 – CC126004
RGBW Contant Current Drive

Description:

The Colordreamer PWM Flex Strip are flexible strips which can be controlled directly using any 3^rd Party PWM dimmer.The strip provides flexibility to fit on any curved surface.

All strips are supplied in a 5 meter roll as standard.

We have used superior thickened 3OZ copper tracks to reduce the effects of voltage drop.

IP20 and IP67 are available.

CONTACT US

Specification

Models	CC126004
LED
Light Source	SMD 5050
Color	RGBW (W:2700K W:3000K W:4000K W:6500K)
CRI for White LED	CRI>80
LED QTY	60LEDs per meter
LED Spacing	16.6mm
Performance
Lumen Output	750lm
Efficacy	47lm per watt
Beam Angle	120°
Electrical
Input Voltage	24VDC
Power Consumption	16W per meter
Control
Protocols	Contant Current Drive
Addressing	N/A
Cutting Pitch	100mm
Physical
Material	Copper 3OZ
Housing Color	White
Length	5000mm
Width	12mm
Height	2mm
Mounting	3M VHB Tape for IP20 Silicone Clips for IP67
Environment
Operating Temperature	-20℃ to +60℃
Storage Temperature	-40℃ to +80℃
Humidity	0-90% non-condensing
IP Rating	Indoor,IP20
Certification	CE
