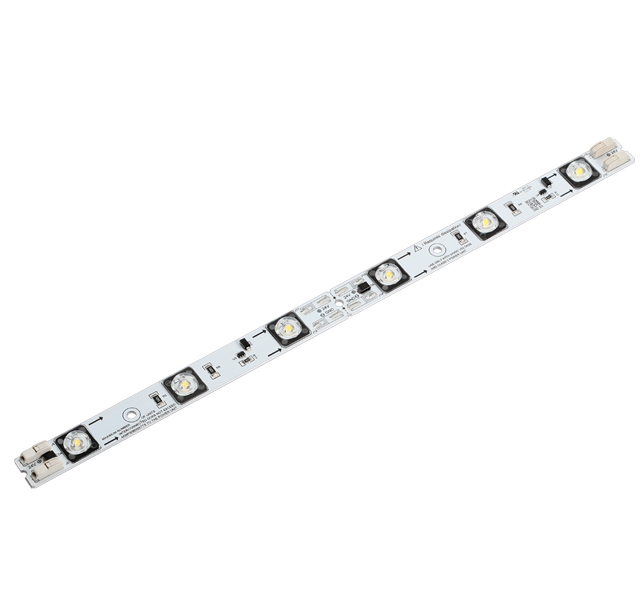

Front Backlight - FB160601201 Cuttable module for light boxes

Product: Front Backlight – FB160601201
Cuttable module for light boxes

Description:

Specification

Models	FB160601201
LED
Color	Static White
Light Source	Mid Power LED
LED Source Color	W:2700K W:3000K W:4000K W:5700 W:6500K
CRI for White LED	Ra>80
LED QTY	12LEDs
Performance
Lumen Output	1440lm
Efficacy	120lm/W based at 6500K
Beam Angle	20°Narrow Medium 40°Wide
Electrical
Input Voltage	21-24VDC
Power Consumption	12W for 600mm L
Control
Protocols	Light on off PWM Dimmable
Physical
Housing	Aluminum 6063 with Tempered Glass
Finish Color	Powder coating, Black/Grey Silver or Custom RAL Color
Dimensions(LXWxH)	600*12mm

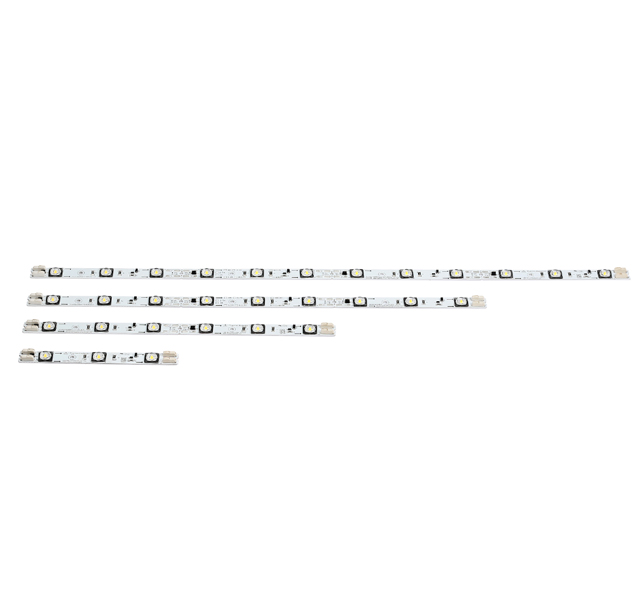

Length	150mm/300mm450mm/600mm

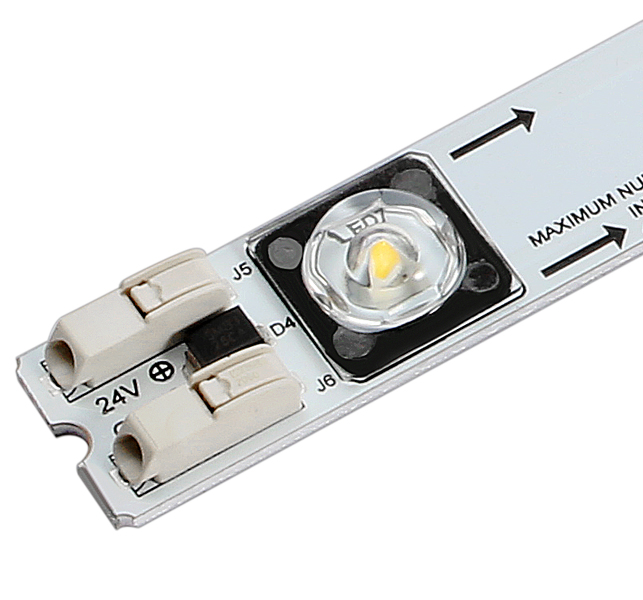

Cable Entry	Wago Connector
Mounting	Surface Mounting
Environment
Operating Temperature	-30℃ to +50℃
Storage Temperature	-40℃ to +70℃
Humidity	0-90% non-condensing
IP Rating	Indoor IP20
Certificate and Safety
Certification	CE
Warranty	2Years Limited Warranty from the Date of Manufacture Contact us if you need extended warranty
